Desktop Active Monitor with GaN Charger

Acoustics, Lumia, and Electrics All-in-One System

Well-designed Acoustic Architecture: The 2.75" mid-low drivers, with the aluminium alloy diaphragm and benefiting from the long-throw design, can reproduce the bass with the frequency down to 55Hz and make the mids sound full-bodied and rich. The 1.25" silk diaphragm dome tweeters are finely tuned for the precise reproduction of high frequency, from which the trebles sound crisp and bright. With the MDF enclosure, the independent acoustic cavity, and the enhancement by patented MazeTube Bass Reflex Channels and TurbMuff Air Noise Suppression Technology, port noises and acoustic resonance are reduced to the lowest level.

Independent cavities for pure sound reproduction

End-to-end High Resolution Audio Process: The end-to-end audio process flow supports high resolution audio up to 24bit/96kHz. The dual TI Class-D digital audio amplifiers provide the precise two-way active crossover, magnify high frequency signals and mid-low frequency signals separately, and manage DRC effectively.

Hi-Res Audio and Hi-Res Audio Wireless Certified: The USB-A and the RCA audio input ports support high-resolution audio signals. With the enhancement of LDAC technology, you can also stream high resolution audio up to 24bit/96kHz to this speaker via Bluetooth.

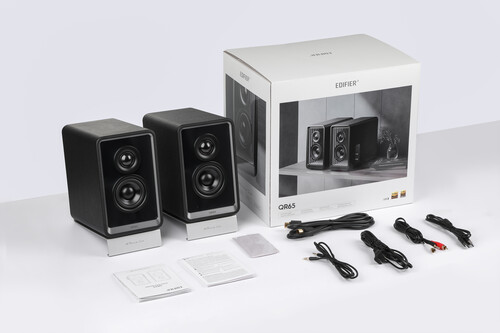

Speaker Stands Supplied: With the bundled aluminum speaker stands, the sound coloration effects can be diminished effectively, which arise from the sound reflection against the desktop surface. Meanwhile, the design of 10-degree angle is for directing the sound precisely at ear level when the speaker is put on a desktop.

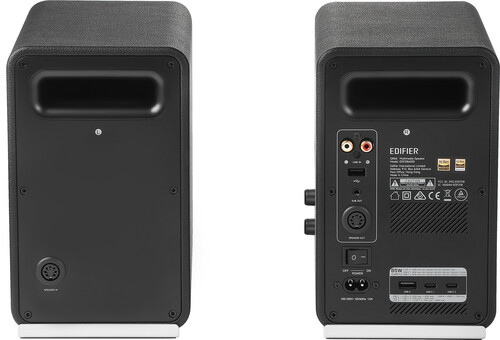

Need More Bass? The SUB OUT port on the rear panel is available for the connection with an external subwoofer for more punchy bass.

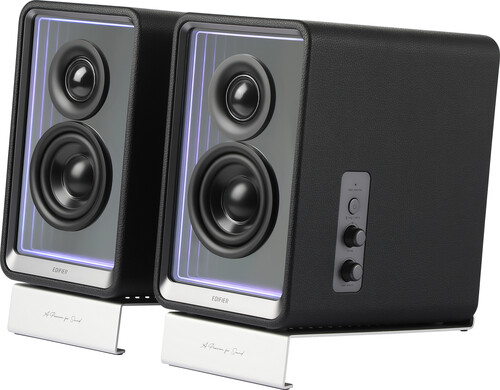

Brilliant Light Effects: Powered by our patented TempoAbyss technology, the baffle can display splendid light effects, which looks like layers and layers of light ribbons falling down apart from the mirror. With the button on the side panel, 11 preset light effects are available for your choice. You can also customize your own light effects more than 16 million on EDIFIER ConneX app.

TurboGaN High-efficiency Charging: Powered by TurboGaN charging technology and supporting mainstream fast charging protocols, it can charge 1000+ compatible devices with high efficiency. With the enhancement of full-time fast charging technology, full-time temperature control technology, and smart power assignment technology, quick and safe charging is guaranteed.

Works with EDIFIER ConneX App: Download the app and enjoy more functions.

Features:

• 70W (RMS) total output power with quality sound
• 1.25" silk dome tweeters and 2.75" long-throw aluminum diaphragm mid-low drivers
• Full digital signal processing, two-way active crossover, and DRC
• Hi-Res Audio and Hi-Res Audio Wireless certified
• Splendid light effects powered by patented TempoAbyss technology
• 65W TurboGaN fast charging via two USB Type-C ports and one USB Type-A port
• Bluetooth V5.3, USB and LINE IN inputs; subwoofer output port available
• Works with EDIFIER ConneX mobile app for more functions

Specifications:

• Charging Output Power: 65W max
• Frequency Response: 55Hz - 40kHz
• Bluetooth Version: V5.3
• Total Output Power (RMS): Treble 15W x 2, Mid-low 20W x 2
• Signal-to-Noise Ratio: ≥ 85dB (A)
• Driver: Treble: 1.25-inch (32mm), Mid-low: 2.75-inch (70mm)
• Audio Inputs: Bluetooth, USB-A, RCA
• Dimensions (W x H x D): 141.5mm x 213mm x 216.8mm (Active speaker), 130mm x 213mm x 212mm (Passive speaker)
• Net Weight: 5.3kg
